Eagle Lights Multi LED Headlight with DRL Lights for Cars and Utility Trucks

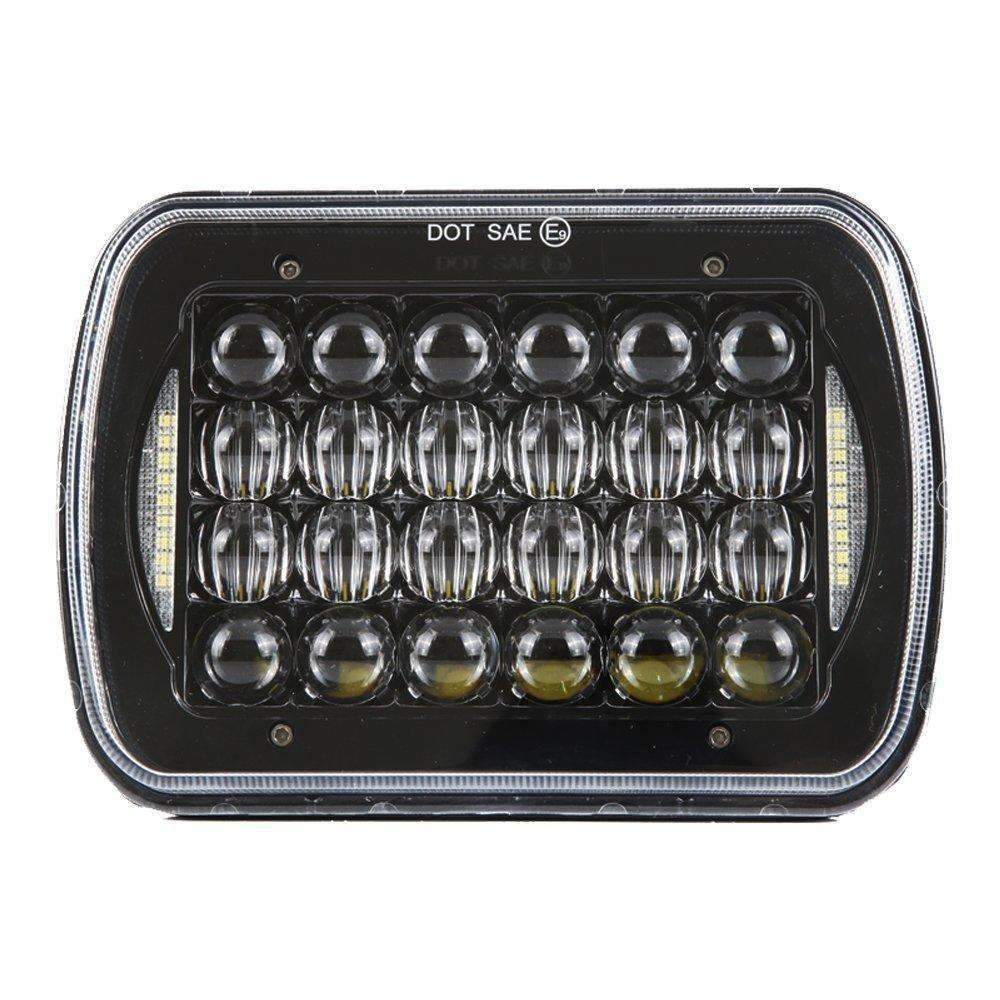

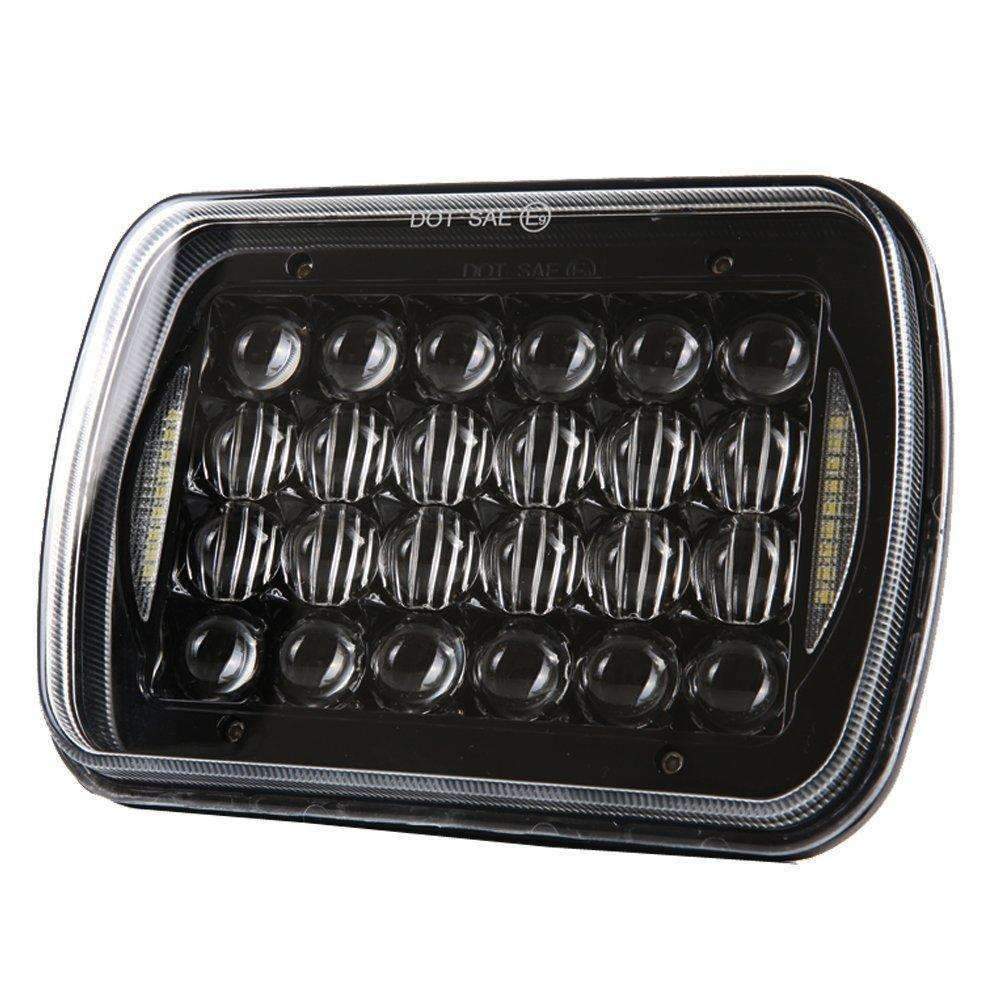

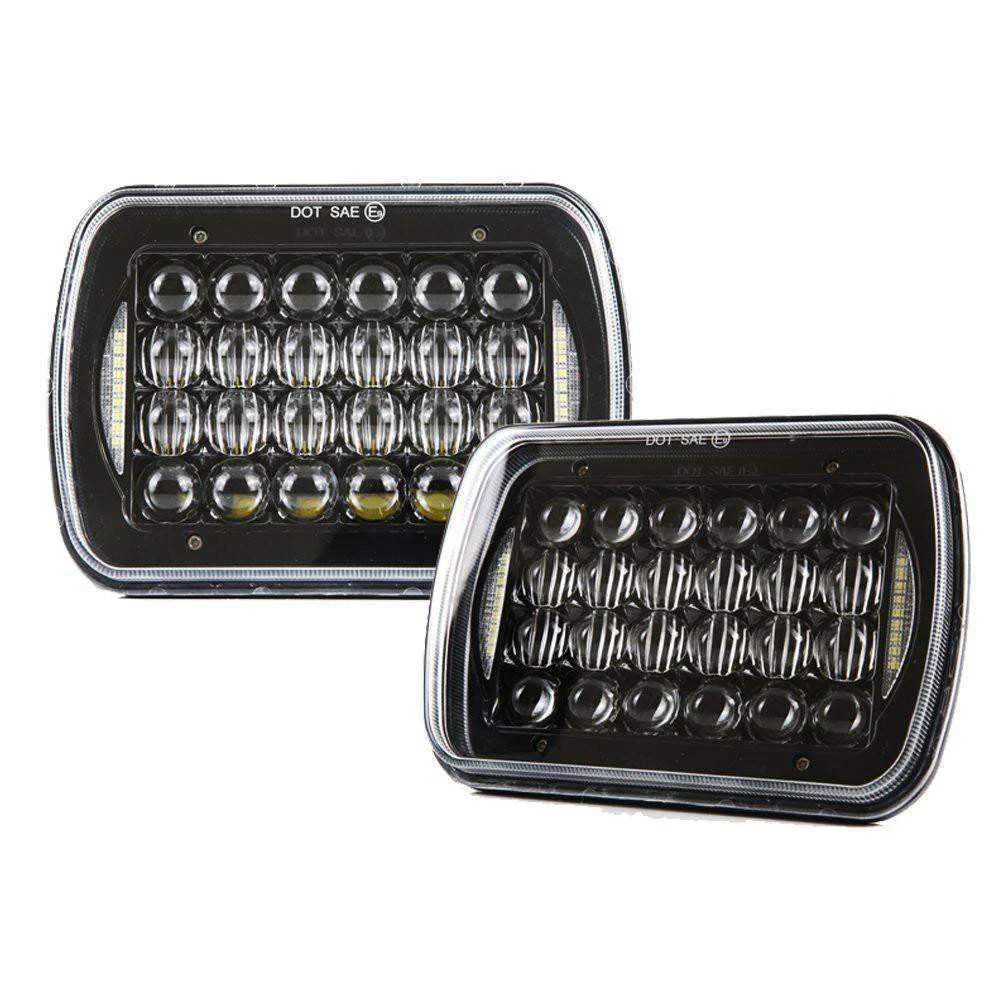

Upgrade your visibility with the Eagle Lights 5736B-2 LED headlights. Featuring 36 powerful diodes, this headlight delivers an intense white output. The two center rows (12 diodes) function as the low beam, while the top and bottom rows activate for high beam. Each side includes 6 LEDs dedicated to a daytime running light (DRL) function, which is wired independently from the main beam. Sold as a pair.

Why Upgrade?

• Massively Improved Visibility: Crisp white light cuts through darkness, rain, and fog better than outdated halogen bulbs.

• Modern Look with DRLs: Sleek black housing and built-in DRLs add style and safety.

• Plug-and-Play Fit: Direct replacement for OEM sealed beam headlights—no modifications needed.

Direct Replacement For OEM Part Numbers:

H6054, H5054, H6054LL, 69822, 6052, 6053, H6014, H6052



---



Technical Specifications:

• Voltage: 12–24V

• Compliance: DOT Compliant (High & Low Beam)

• Dimensions: 7.4” (W) x 5.25” (H) x 2.67” (D)

• Shape: Rectangular

• Outer Lens: Clear Polycarbonate

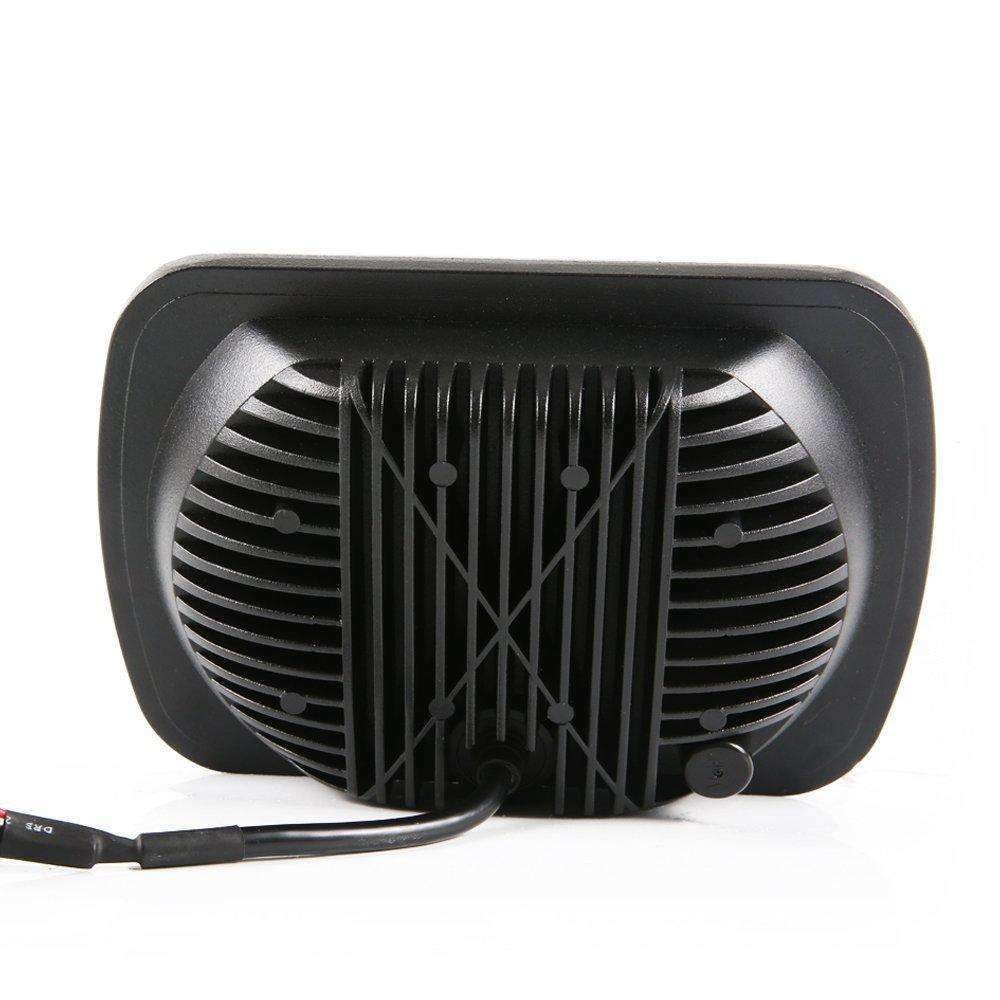

• Housing: Black Die-Cast Aluminum

• Bezel Color: Black

• Compatibility: Fits 5x7” sealed beam headlight housings

• Operating Temp: -40°C to 65°C (-40°F to 149°F)

• Weight: 2.4 lbs

• Lumen Output: 3000 LM (Low Beam), 4800 LM (High Beam)
